Can LED Headlights Drain Car Battery?

You park the car for a couple of days, come back, and the battery is dead. You just installed LED headlights — are they the cause?

How Much Power Do LED Headlights Actually Use?

Most aftermarket LED replacement headlight bulbs draw between 15W and 45W per bulb, with low-beam units commonly landing in the 20–30W range. Some high-output kits push past 40W. By contrast, the halogen bulbs they replace (H7, H11) are typically 55W per bulb, with H9 high beams at 65W — roughly two to three times the draw of a comparable LED.

Here's how that translates into runtime on a typical 12V battery:

Factory LED headlamps and aftermarket LED retrofits both consume far less power than halogen, but they aren't the same hardware. OEM units are engineered as a complete assembly with a dedicated driver, optics, thermal management, and CAN-bus integration. Aftermarket kits put an LED emitter into a halogen-shaped housing and often need add-on resistors or decoders — which is where most install-related battery problems come from.

Note the key takeaway: LEDs left on overnight will still flatten your battery — just more slowly than halogens. Two 20W LEDs running for 8 hours pull about 26Ah, which is enough to push a typical starter battery past the 50% depth-of-discharge threshold and leave you stranded in the morning. "LED" doesn't mean "forgiving"; it means "slower."

When the Car Is Off, the Headlights Shouldn't Be Drawing Power

With the ignition off and the headlight switch off, a correctly wired headlight circuit draws zero current. (Every modern car does have a small ongoing parasitic draw of roughly 20–85 mA from the alarm, ECU, and keyless entry, but that's separate from the headlights — more on that below.)

If your battery is dying overnight only after an LED swap, the most common cause is wiring: the LED was tapped into a circuit that stays live with the ignition off, or a polarity got crossed during install. Aftermarket LEDs that ship with an external driver/control module add another wrinkle — those drivers can leak current through a hot 12V feed even when the car is asleep.

How to Test If Your Wiring Is at Fault

1. Pull the fuse for the headlight circuit.
2. Turn the headlight switch on.
3. If the headlights stay off, the wiring is fine — the headlight fuse is genuinely controlling the circuit.
4. If the headlights still come on, they're being fed from another circuit. That's your problem.
5. Pull other fuses one at a time until the LEDs go dark. The last fuse you pulled identifies the offending circuit.
6. Have that wiring inspected and rerouted to the correct ignition-switched feed.

Will Load Resistors Drain Your Battery?

Because LEDs draw so little current, many vehicles' bulb-out detection systems assume the bulb has failed — which is what causes the LED to flicker or trigger a dashboard warning. The fix is a load resistor (commonly 6Ω, 50W rated) wired in parallel with the LED.

Here's how it actually works: the LED runs normally on its own branch of the circuit, drawing its full operating current. The resistor sits on a parallel branch and independently dissipates extra current as heat, so the vehicle's computer sees a combined draw similar to a halogen bulb. It is not the case that the resistor "steals" most of the power and the LED runs on scraps — both run in parallel, each drawing its own current.

The total power draw with a resistor is higher than a bare LED, but still well below the halogen it replaced. And critically, with the headlight switch off, the resistor draws nothing — current only flows when the LED is on.

CAN-bus Errors Are a Different Problem

Modern vehicles with CAN-bus electrical systems do more than just check whether a bulb is drawing current — they monitor the whole circuit and may throw persistent dashboard warnings even when a basic resistor is installed. If you're seeing a bulb-out warning that won't clear, you likely need a CAN-bus decoder or anti-flicker harness rather than (or in addition to) a plain load resistor.

Mount Resistors Carefully — They Get Hot

Load resistors dissipate power as heat by design and can run hot enough to melt nearby plastic or wiring loom. Always mount them to a metal surface (the steel of the inner fender or core support is ideal) and keep them well clear of plastic trim, fuel lines, and the rest of the wiring harness.

If you'd rather skip the resistor question entirely, look for plug-and-play kits that ship with built-in CAN-bus drivers or preinstalled load resistors. They cost a bit more, but they remove the install variables that cause most LED-related drain complaints.

Also read: Why Do My Turn Signals Blink Fast With LED?

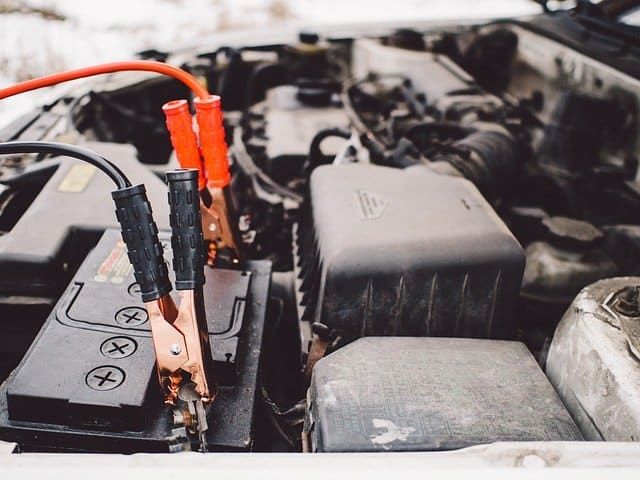

What's Actually Draining Your Car Battery

If your LEDs and wiring check out, look at these four common culprits:

• Lights left on. Headlights, dome lights, glove-box lights, or a trunk that didn't latch fully — any of them will drain a battery overnight, LED or not.
• Parasitic drain. A normal car draws 20–85 mA when off. A faulty module, aftermarket alarm, or improperly wired LED driver can push that into the hundreds of milliamps and flatten the battery in a few days.
• Temperature. A typical lead-acid battery loses about 35% of its cranking power at 32°F (0°C) and roughly 60% at 0°F (−18°C). Sustained heat above ~100°F also accelerates wear. See our piece on LED headlights in cold weather for more on cold-weather lighting behavior.
• Old battery. Most car batteries last 3–5 years, with hot climates pushing toward the lower end and cooler climates often beyond five. Have it load-tested annually after the three-year mark.

Quick Summary

• LED headlights draw 15–45W per bulb vs. 55–65W for halogen — they use less power, but they will still drain a battery overnight if left on.
• With the car off, a correctly wired headlight circuit draws nothing. A dead battery after an LED install almost always points to wiring tied to an always-on circuit.
• Load resistors run in parallel with the LED to satisfy bulb-out detection. They get hot — mount them on metal, away from plastic.
• If your battery still dies, check for parasitic drain, temperature damage, or simply an aging battery (3–5 year lifespan).
