Do Light Switches Need To Be Grounded? Requirement Checker

Unscrewing a switch plate reveals a handful of cables, and in most modern homes one of them is a bare copper or green-insulated ground wire. Does every light switch actually need one?

What Happens If You Don't Ground A Light Switch?

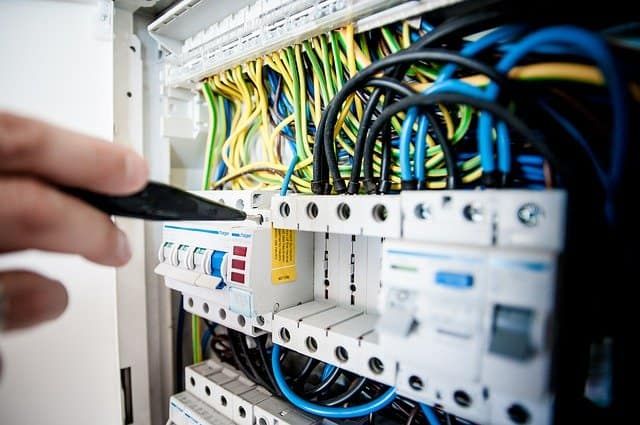

The bare or green-insulated conductor at a light switch is called the equipment grounding conductor, or EGC. Despite the name, it doesn't extend into the earth below your home. It travels back to your main electrical panel, where it's bonded to the neutral and to the grounding electrode system — typically a ground rod or the rebar encased in your concrete footing. Its job isn't to dump charge into the dirt; it's to give fault current a low-resistance path back to the source.

Here's why that matters. If a hot conductor inside a switch or fixture comes loose and touches a metal part — the switch's yoke, a metal faceplate, the junction box — that metal is suddenly energized at line voltage. Anyone touching it while also in contact with something grounded (a plumbing fixture, a damp floor, another appliance) completes a circuit through their body. That's electric shock.

The ground wire prevents that. By giving fault current an alternative route, it carries the fault back to the panel instead of through you.

It also plays an indirect role in tripping the breaker. Breakers respond to excess current in the hot conductor — they don't sense the ground wire directly. But by giving fault current a low-resistance path back to the panel, the ground wire ensures a short-to-case draws enough current to trip the breaker in a fraction of a second. Without that path, a fault can energize a metal enclosure at full line voltage without drawing enough current to trip anything — which is exactly the shock hazard grounding is meant to eliminate.

Is A Ground Wire Legally Required?

Grounding requirements vary by country and by local jurisdiction, so always check your local code before working on switches. What follows is a summary of the U.S. rules; UK installations follow BS 7671, which treats switch grounding differently (most UK switch installations only carry a CPC to the switch when the faceplate is metal).

In the U.S., NEC 404.9(B) requires all snap switches — including common toggles, 3-ways, and dimmers — to be connected to the equipment grounding conductor, or to a metal box that is itself grounded. The rule has been in force since the 2008 edition and was tightened in 2011 and 2017. Toggle switches and dimmers carry the same requirement; the old notion that only dimmers need a ground is a misreading of the code.

The code does carve out a replacement exception for light switches in older ungrounded wiring. You can install a replacement switch without a ground only if the switch is fitted with a non-conductive (plastic) faceplate, or the circuit is protected by a GFCI somewhere upstream and the switch is labeled "No Equipment Ground." The GFCI route is the most practical option in older homes and is often overlooked — it's fully code-compliant and much cheaper than rewiring.

Inspection services are strict about this. If your switches aren't grounded and the replacement-exception conditions aren't met, expect to be flagged — especially since ungrounded switches are a known source of shocks.

Metal Vs Plastic: Faceplates And Boxes

Particularly with old houses, replacing a light switch raises a question the hardware-store aisle doesn't always answer: metal or plastic?

The short version: a plastic faceplate doesn't need to be grounded because it's an insulator — it can't become energized by a fault. A metal faceplate can carry fault voltage to your hand if it's not properly bonded, which is why NEC 404.9(B) specifically requires metal faceplates to be connected to the equipment grounding conductor. Here's how the two compare:

While metal switch plates tend to be the pricier choice, the premium buys durability and a cleaner look. Plastic is lighter, cheaper, and in many older homes actually safer — because it removes the shock hazard entirely when no ground is available.

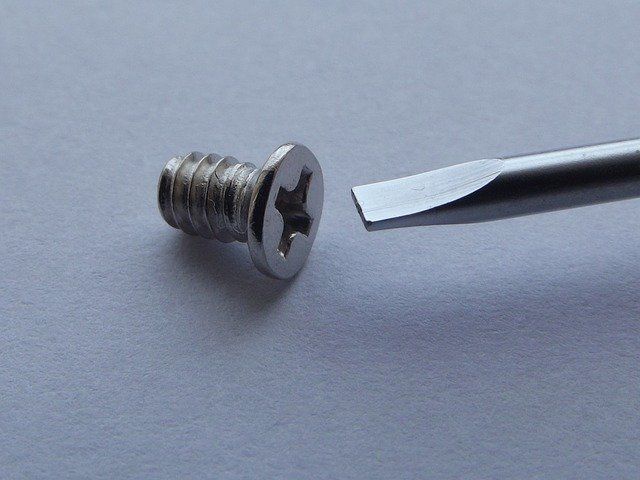

One common misconception worth correcting: a ground screw is not an alternative to a ground wire. It's simply the termination point for the equipment grounding conductor — an unconnected green screw provides no protection at all. What does work without a separate wire is when the switch's mounting yoke makes direct metal-to-metal contact with a metal box that is itself grounded. NEC 250.148 and 404.9(B)(1) recognize this as a compliant grounding path.

How To Ground A Light Switch When There's No Ground Wire

⚠️ Safety first: Electrical work carries shock and fire risk. Turn off power at the breaker before any hands-on work, verify the circuit is dead with a tested voltage tester, and when in doubt, call a licensed electrician. The steps below describe what a qualified DIYer can safely do; anything beyond a basic switch replacement in ungrounded wiring is best left to a professional.

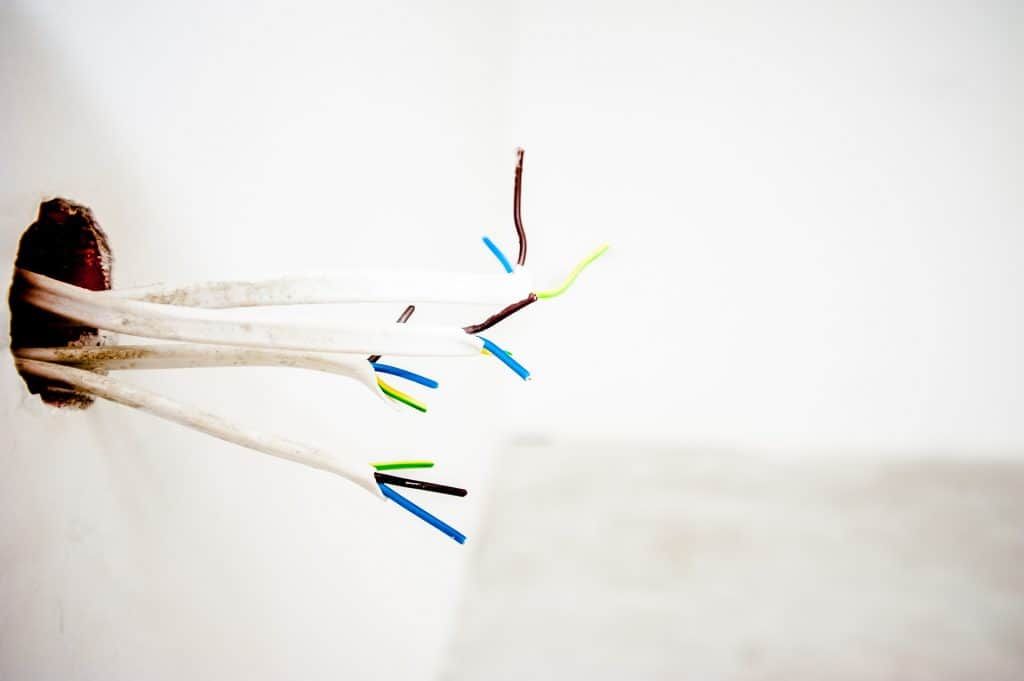

Older U.S. homes were commonly wired with two-conductor cable, which was code-compliant at the time but contains no equipment grounding conductor. If you open a box and find only a black and white wire, that's why. You still have several legal options:

1. Turn off power at the breaker and verify the circuit is dead with a non-contact voltage tester before touching any wires.
2. Remove the existing switch and inspect the box. If it's a metal box, the box itself may be grounded through the metal sheath of old BX or armored cable — in which case you have a ground path even without a separate wire.
3. Test the box for ground. Set a multimeter to continuity and touch one probe to the metal box, the other to a known ground point such as a cold-water pipe. Continuity confirms the box is grounded. (A non-contact voltage tester held against a live box will light up if the box is hot rather than grounded — useful as a quick sanity check, but the multimeter test is definitive.)
4. If the metal box is grounded, pigtail a short length of green wire from the switch's ground screw to the box using a listed grounding screw or clip. That's your code-compliant ground path.
5. If the box is plastic, or the metal box is not grounded, invoke the NEC 404.9(B) replacement exception: fit the switch with a non-conductive plastic faceplate, or protect the circuit with a GFCI upstream and label the switch "No Equipment Ground."
6. When in doubt, hire a licensed electrician. Running new grounded cable is the only way to fully modernize the circuit, and that's beyond a straightforward switch swap.

This is especially important in damp locations like bathrooms and kitchens, where contact with a live surface could be fatal rather than merely painful. GFCI protection is essentially mandatory on those circuits for exactly that reason.

Do Smart Switches Need To Be Grounded?

Smart switches are now a mature product category — Belkin's WeMo Light Switch shipped in mid-2013 and Lutron's Caséta line launched the following year, and the field has expanded into dozens of ecosystems since. The same NEC grounding rules apply to them as to any other snap switch.

For the most part, smart switch installation works like installing a regular switch: note your existing wiring, then match the configuration on the new device.

The catch is the neutral wire. Most smart switches need a neutral at the switch box because their electronics need constant power even when the lights are off. NEC 404.2(C) only started requiring neutrals at switch locations in the 2011 edition, and only for new construction. Switch loops without a neutral were standard practice through the 1980s, 1990s, and 2000s, so homes built before roughly 2011 — depending on when your state adopted that code cycle — may not have one available at the switch.

A handful of smart switches are specifically designed to work without a neutral. They draw a tiny trickle of current through the bulb, cost more than standard models, and can sometimes flicker low-wattage LEDs — but they're a workable option if rewiring isn't practical.

Regardless of whether the switch is smart or "dumb," the grounding rules above still apply.

Key Takeaways

Before you swap any switch, a quick mental checklist:

• Metal box? It must be grounded — by an EGC or by a grounded cable sheath.
• Metal faceplate? NEC 404.9(B) requires it to be bonded to the equipment grounding conductor.
• Dimmer or toggle, the rule is the same — all snap switches get a ground in new installations.
• Smart switch? Check for a neutral wire before buying. No neutral means either a no-neutral model or a rewire.
• Older home with no ground at all? Use the NEC 404.9(B) replacement exception: plastic faceplate, or upstream GFCI protection with a "No Equipment Ground" label.

Skipping grounding puts you one loose wire away from completing a circuit with a lethal electrical charge. The code requirements exist for exactly that reason.
